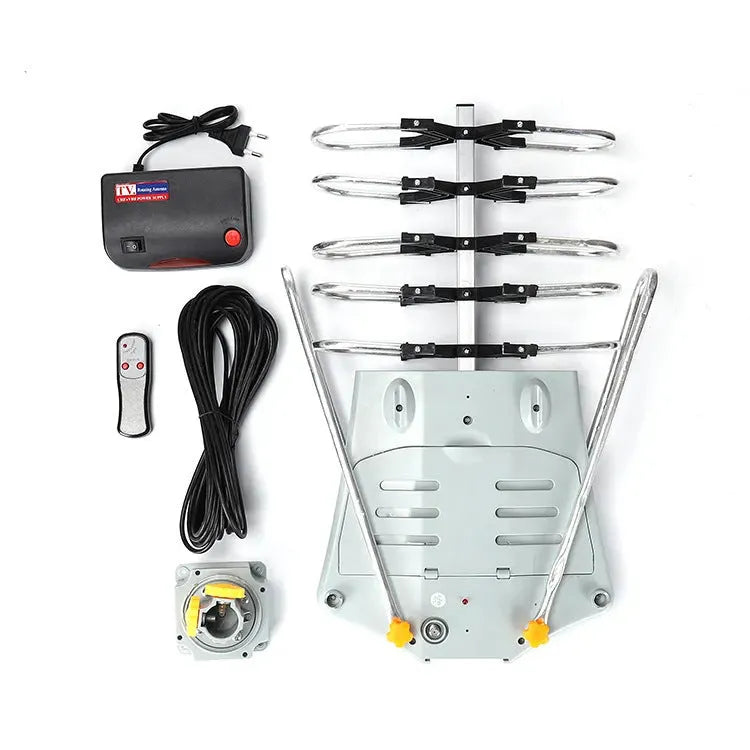

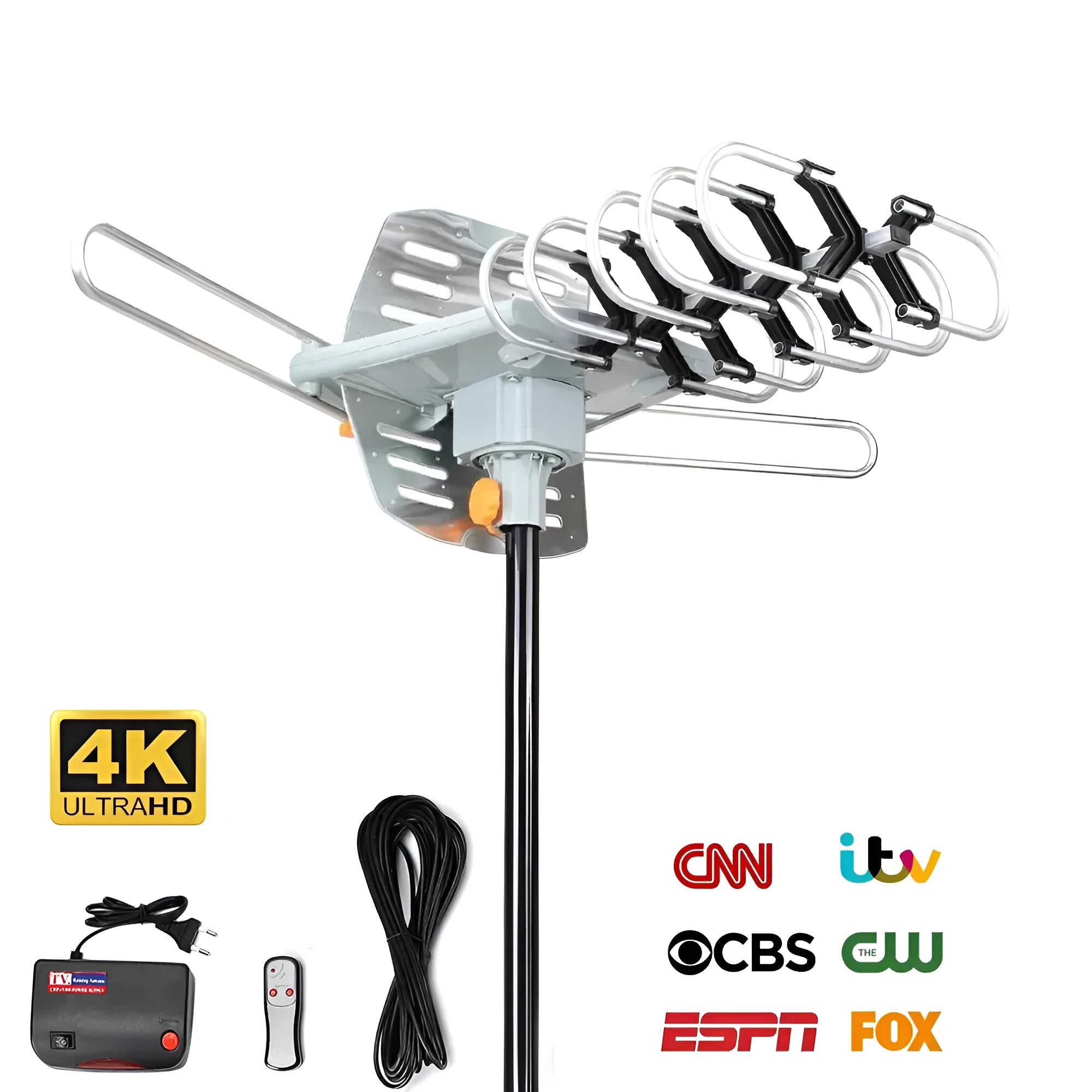

Rotatable High Gain Digital TV Antenna GR-1002 for Outdoor Signal Reception

Optimising television reception in areas with weak broadcast signals requires hardware capable of precise adjustment and significant amplification. The GR-1002 outdoor TV antenna is designed to address these challenges by combining a rotatable form factor with high-gain performance metrics. This unit targets the full 470-862MHz frequency spectrum, ensuring compatibility with standard digital terrestrial television broadcasts. By focusing on technical specifications such as impedance matching and standing wave ratios, this antenna provides a reliable method for accessing clear picture quality without the need for satellite subscriptions. Its design prioritises functional adaptability, allowing users to physically direct the antenna towards the transmission source for maximum efficiency.

Technical Specifications and Performance

The core functionality of the GR-1002 lies in its ability to amplify signals while maintaining transmission integrity. The following sections detail the operational parameters that define its performance capabilities in real-world scenarios.

Frequency and Gain Range

This antenna operates exclusively within the 470-862MHz band, which encompasses the standard UHF frequencies used for digital television transmission. Within this range, the unit provides a variable gain of 28-36dB. This level of amplification is critical for users located at considerable distances from broadcast towers or those obstructed by terrain and buildings. The high gain ensures that even faint signals are boosted to levels usable by standard television tuners, reducing pixelation and signal loss.

Impedance and Signal Efficiency

Matching the antenna's impedance to the transmission line is vital for minimising signal reflection and loss. The GR-1002 features a 75 Ohm impedance, which is the universal standard for coaxial cabling and television equipment. Furthermore, it maintains a standing wave ratio (SWR) of ≤ 1.5. A low SWR indicates that the majority of the power is being radiated rather than reflected back to the source, resulting in a more stable and consistent viewing experience with fewer dropouts.

Rotatable Design Mechanics

Signal directionality is a key factor in outdoor reception. The rotatable construction of this antenna allows for precise manual adjustment. Users can rotate the element to align perfectly with the azimuth of the nearest or strongest broadcast tower. This mechanical flexibility is particularly useful in regions where multiple transmitters are located in different directions, enabling the user to fine-tune the setup for the best possible channel list without needing complex motorised systems.

Installation and Power Requirements

Proper installation ensures the longevity of the unit and the safety of the electrical connection. The following guidelines outline the necessary power and placement considerations.

Power Supply Compatibility

The GR-1002 is configured with a 110V US power specification. This indicates that the active components within the antenna or its associated amplifier require a 110-volt alternating current supply, adhering to North American electrical standards. Installers must ensure the mounting location has access to this specific voltage or that appropriate measures are taken to adhere to local electrical codes if used in regions with different standards, though the product is specified here for US power.

Outdoor Deployment

As an outdoor-rated unit, the antenna is constructed to endure exposure to weather elements. It should be mounted on a mast or pole in an elevated position, free from immediate obstructions like heavy foliage or metal structures that could cause interference. The robust build is intended to maintain alignment and electrical performance despite wind and rain, provided it is secured according to standard installation practices for exterior electronics.

Practical Benefits for Viewers

Choosing the right antenna involves balancing technical needs with practical usage scenarios. This product offers specific advantages for users seeking reliable free-to-air television.

Signal Stability and Clarity

The combination of high gain and low standing wave ratio directly translates to a more stable image. Viewers often experience pixelation or complete signal loss during adverse weather or when signals are weak. By amplifying the signal within the specific digital band and ensuring efficient transfer via 75 Ohm matching, this antenna mitigates these issues, providing a consistent viewing experience for news, sports, and entertainment.

Why Select This Model

The GR-1002 is ideal for users who need a dedicated solution for digital terrestrial TV without the complexity of motorised rotators or the cost of satellite services. Its specific focus on the 470-862MHz range ensures it is optimised for modern digital broadcasts rather than obsolete analog signals. For households in fringe reception areas requiring a 110V US power setup, this antenna offers a technically sound method to improve channel availability and picture quality through precise manual alignment.
