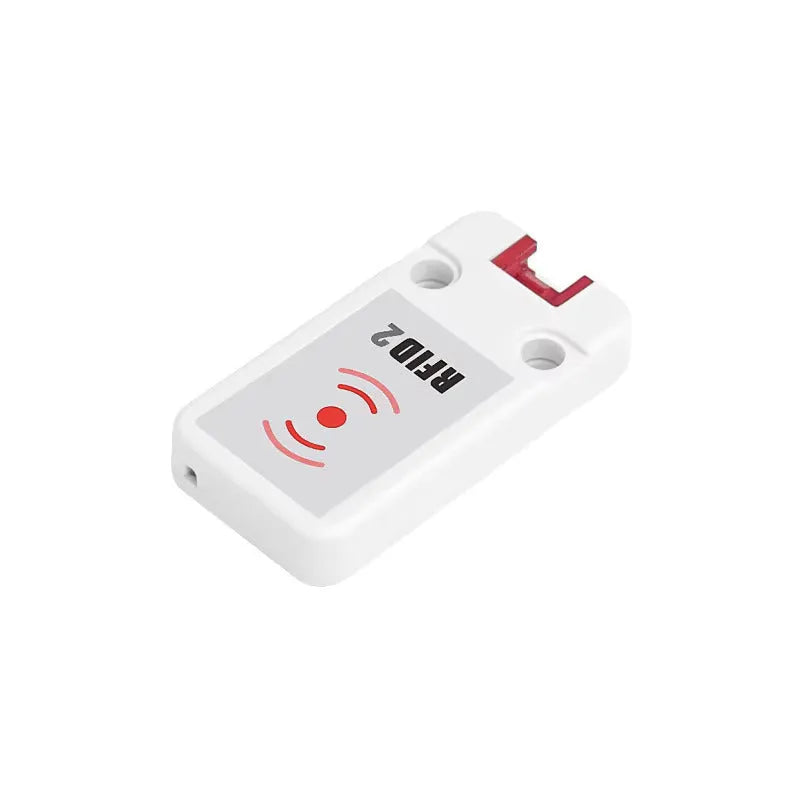

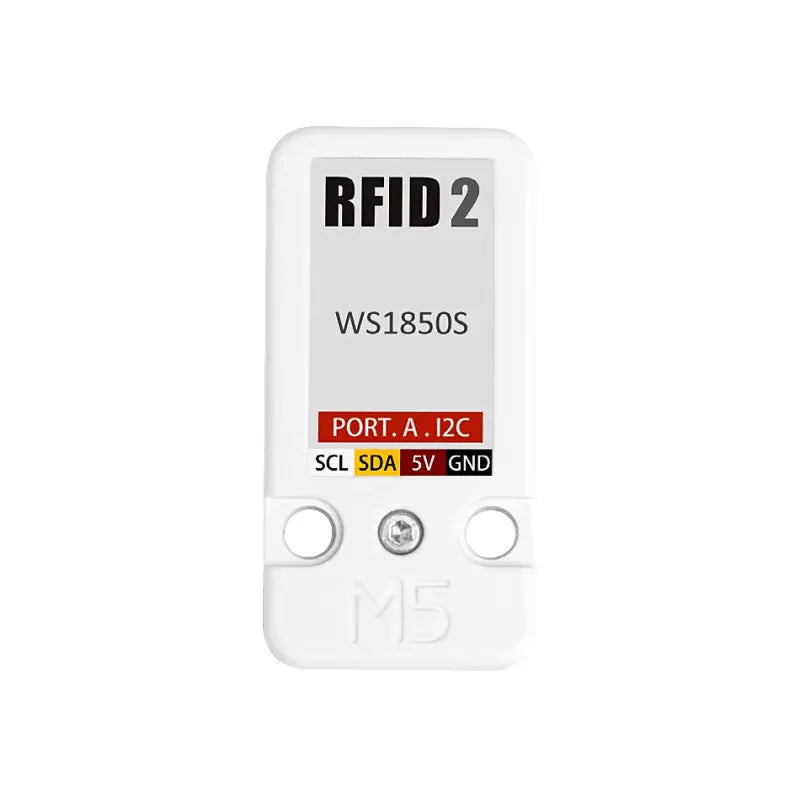

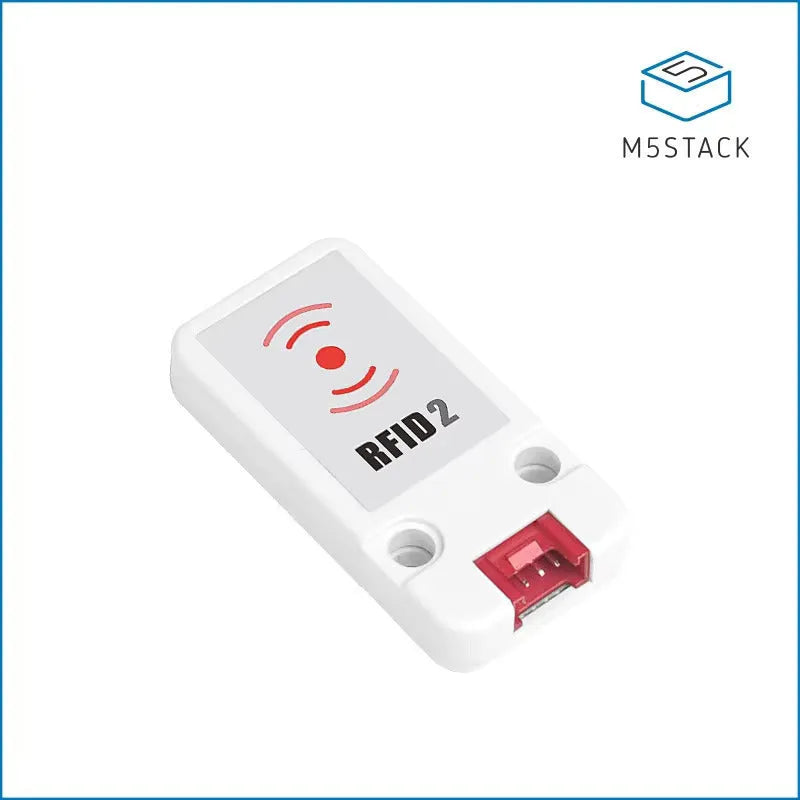

M5Stack WS1850S 13.56MHz RFID Reader Module for NFC and IoT Development Projects

This RFID reader unit, model WS1850S, serves as a dedicated hardware component for integrating 13.56MHz Near Field Communication (NFC) and Radio Frequency Identification (RFID) capabilities into Internet of Things applications. Designed to work with the M5Stack ecosystem and other development platforms, it provides a straightforward path for adding contactless data exchange to prototypes and finished products. The module supports standard protocols and connects via a simple I2C interface, making it accessible for educational purposes, hobbyist projects, and professional IoT solutions. Its inclusion of mounting features and a connection cable allows for rapid setup and testing in various configurations.

Features and Construction

The M5Stack RFID2 module is built around core specifications that define its performance and application scope. Its construction prioritises reliable communication within the 13.56MHz frequency band and integration ease with common microcontroller systems.

Material and Build

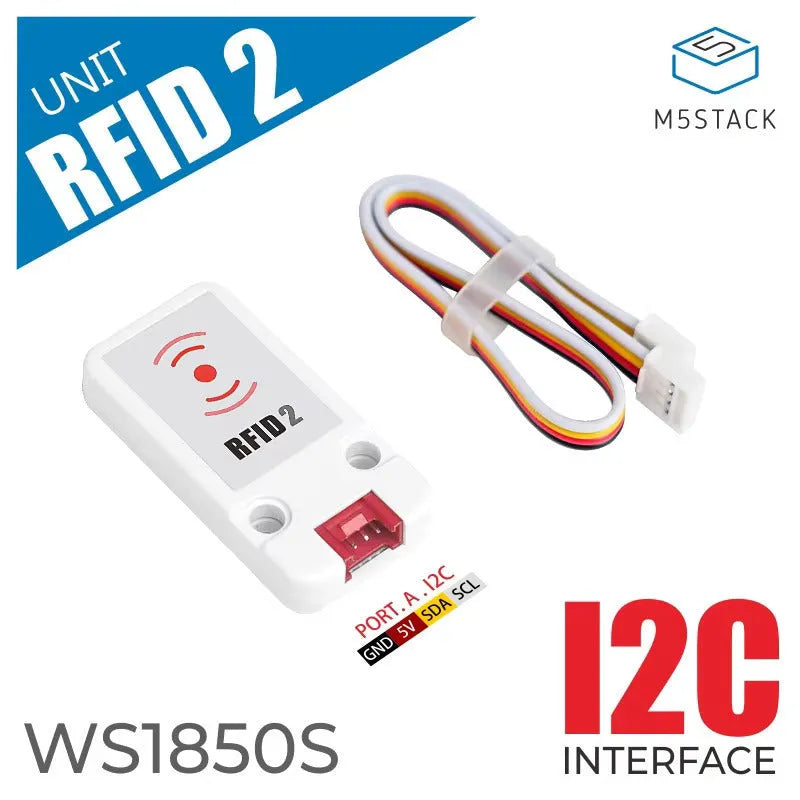

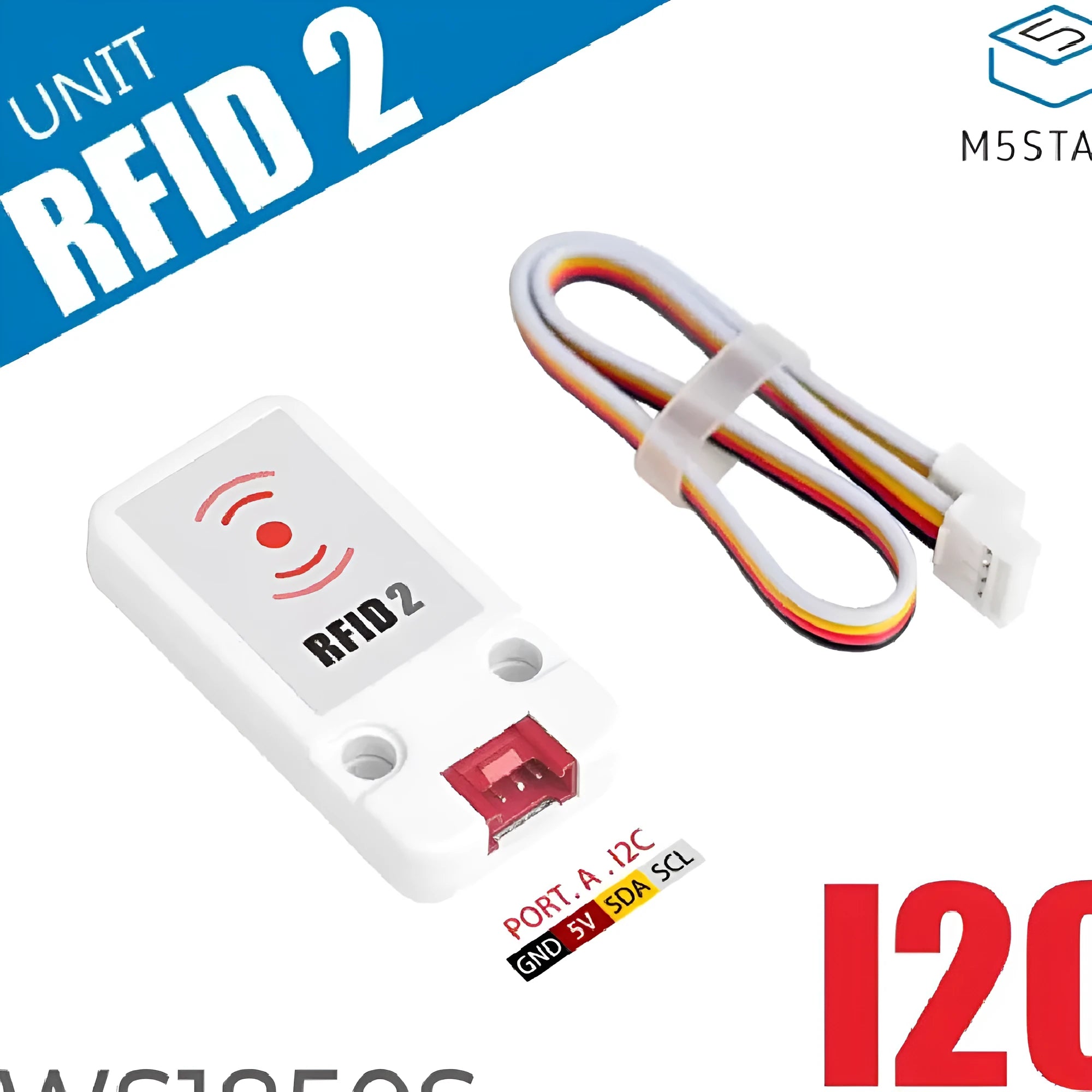

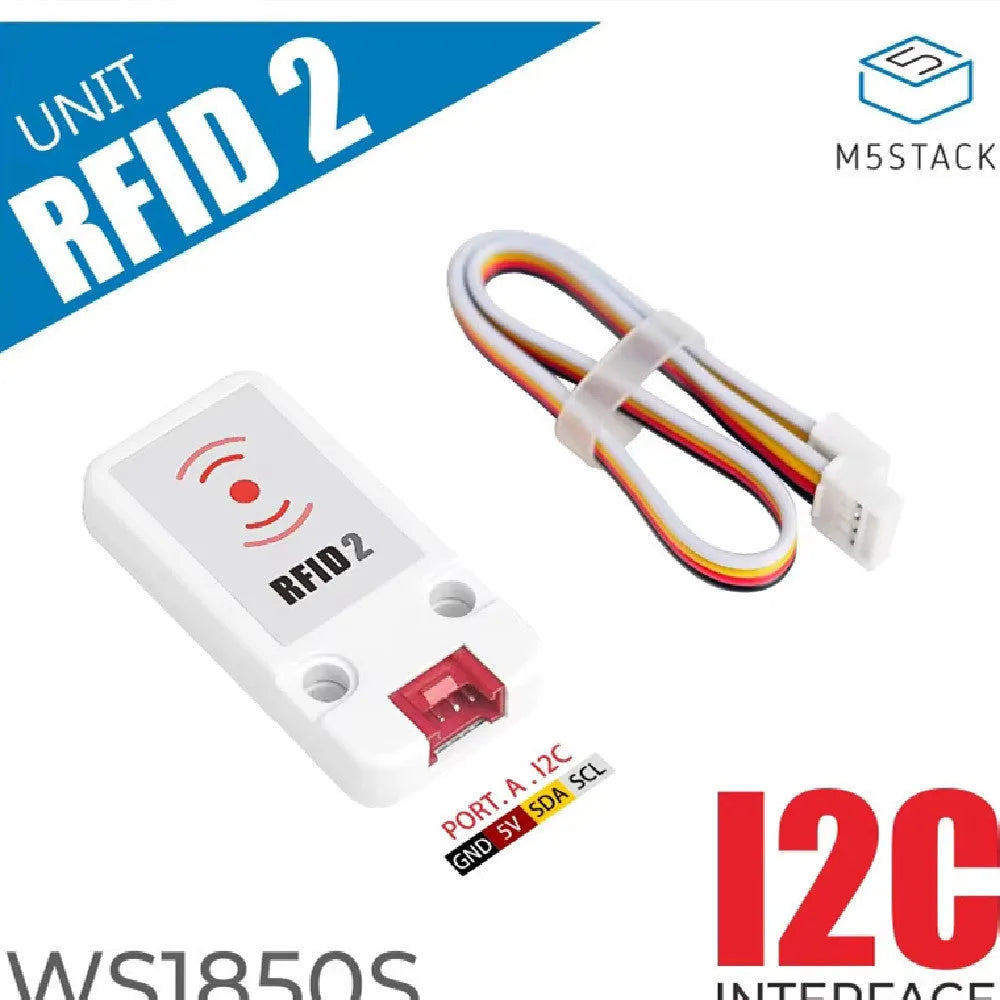

The unit is supplied as a complete electronic module. While the specific materials used for the printed circuit board (PCB) and external casing are not enumerated, the product is designed for developer use. It arrives fully assembled and tested, requiring only connection via the included HY2.0-4P cable to a compatible host like an M5StickC or M5Core. This plug-and-play approach reduces initial setup complexity.

Size and Practical Fit

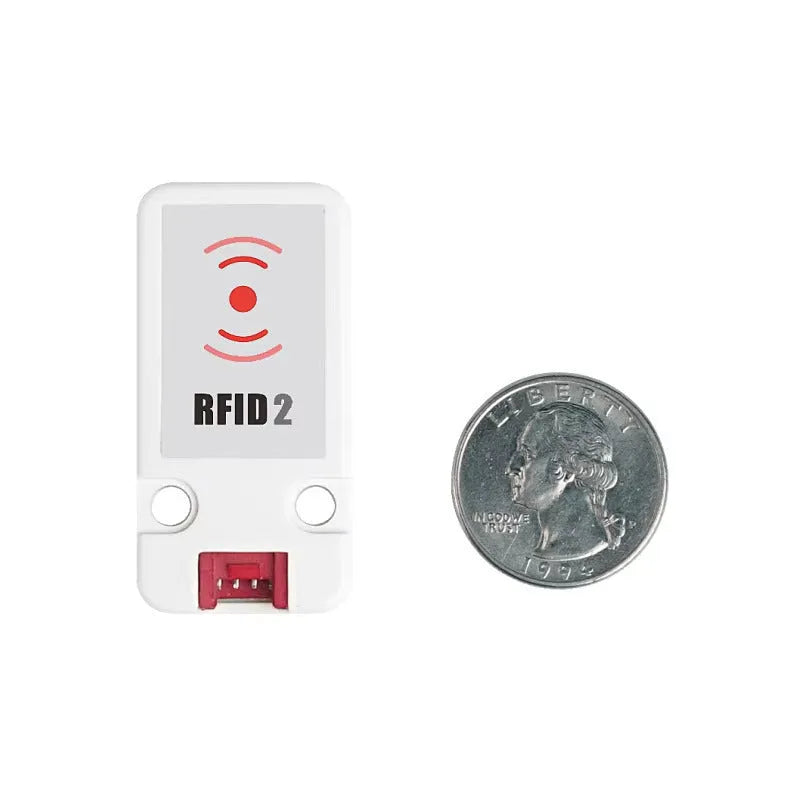

The module's dimensions are noted as 7 by 2 units, offering a compact form factor suitable for embedding into projects with space constraints. A key physical feature is the inclusion of two Lego-compatible mounting holes. This allows the unit to be securely attached to custom structures, other M5Stack modules, or prototyping frames without specialised brackets or adhesives, facilitating modular and reconfigurable designs.

Uses and Placement

This RFID reader's specifications directly inform its ideal applications and placement within a system. Its operational parameters guide where and how it can be effectively deployed.

Event or Professional Use

In professional or event-based IoT scenarios, the module can be employed for access control systems, asset tracking, or interactive installations. Its support for ISO14443A, MIFARE, and NTAG protocols means it can read a wide variety of common NFC tags and cards. The specified reading distance of less than 20mm defines it as a short-range reader, ideal for applications where precise, intentional interaction is required, such as tap-to-pay simulators, secure logins, or inventory management where items are scanned individually.

Everyday Home Use

For home automation and hobbyist projects, this module enables creative applications like smart locks activated by NFC key fobs, programmable task triggers using NFC stickers, or toy and game interactions. Compatibility with beginner-friendly platforms like UIFlow's Blockly interface and Arduino lowers the barrier to entry. The low sleep power consumption (1uA) and wide operating temperature range (-20°C to 85°C) also support its use in always-on, battery-powered devices placed in varied environments around the home, such as a mailbox notifier or a pantry inventory tracker.

Benefits and Buying Value

The value of this development module lies in its specific combination of features, ease of integration, and practical design choices that address common developer needs.

Reuse and Low Maintenance

The module is designed for reuse across multiple projects. Its standard I2C interface and well-documented protocol support mean the code developed for one application can often be adapted for another. The durable construction, implied by an operational temperature range spanning 105 degrees and a data retention period exceeding ten years, suggests suitability for long-term deployments without frequent maintenance or data loss concerns. The Lego-compatible mounts further promote reuse within a modular physical setup.

Why Choose This Product

This RFID reader module presents a focused solution for adding 13.56MHz NFC/RFID functionality. Its direct compatibility with the popular M5Stack ecosystem and Arduino provides a large support community and abundant learning resources. The inclusion of a necessary cable and the physical mounting solution in the package means developers can begin prototyping immediately without sourcing additional parts. For those requiring a specific 13.56MHz reader with I2C output, defined protocol support, and a very close reading range, this unit offers a complete, ready-to-implement component.
