Handheld Digital Oscilloscope: 40-70MHz Bandwidth for Automotive and Electronics Repair

This compact digital oscilloscope delivers professional-grade diagnostic capabilities in a portable format suitable for automotive workshops, electronics repair stations, and field service applications. Measuring just 198mm by 38mm by 96mm, it fits easily into toolboxes or can be carried in its included portable bag to various work locations. With a bandwidth range of 40-70MHz and a sampling rate of 250MSa/s, it captures electrical signals with sufficient detail for troubleshooting common vehicle systems, circuit boards, and electronic components. The 10,000 waveform captures per second provide rapid visual feedback when testing sensors, ignition systems, communication buses, or power circuits.

Features and Construction

The handheld oscilloscope combines digital display technology with practical accessories designed specifically for repair and diagnostic work. Its construction prioritises portability without compromising core measurement functions, making it suitable for technicians who need to move between vehicles or workstations.

Material and Build

The oscilloscope features digital display components that present waveform data clearly for analysis during diagnostic procedures. The included portable carrying bag provides protection against workshop environments, keeping the unit safe from dust, moisture, and accidental impacts during transport between jobs. All measurement accessories including probe pens, crocodile clips, and adapters are designed for repeated connection and disconnection during testing scenarios.

Size and Practical Fit

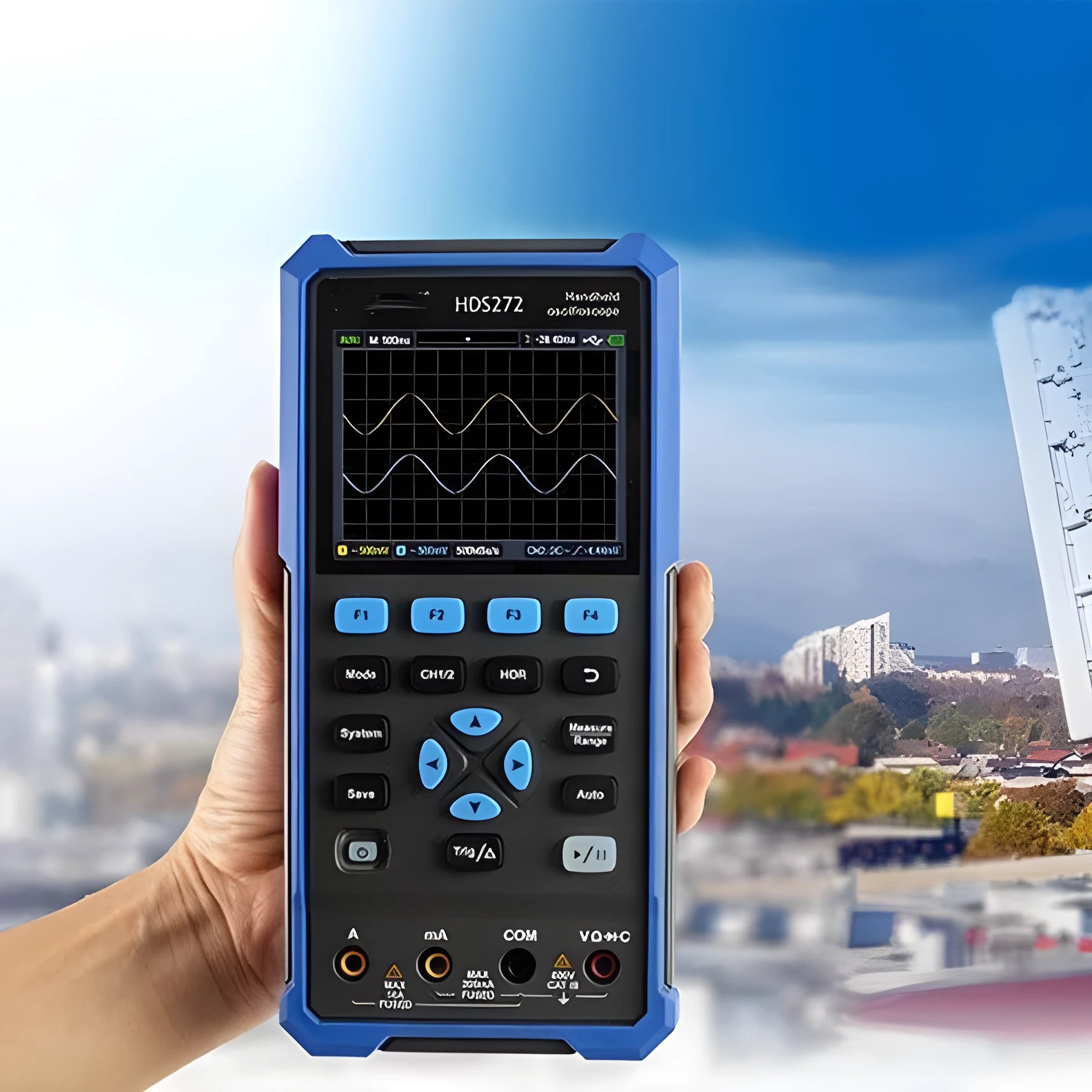

With dimensions of 198mm in length, 38mm in width, and 96mm in height, the oscilloscope maintains a form factor that fits comfortably in one hand during use. This compact design allows technicians to position the unit conveniently while making connections to vehicle diagnostic ports or electronic test points. The size enables storage in standard toolboxes or glove compartments, supporting mobile repair scenarios where bench space may be limited.

Uses and Placement

This handheld oscilloscope serves multiple applications across automotive and electronics repair environments. Its combination of bandwidth, sampling rate, and included accessories makes it particularly suitable for technicians who require both portability and adequate measurement capabilities.

Event or Professional Use

In professional automotive workshops, the oscilloscope assists with diagnosing engine management systems, ABS sensors, CAN bus communications, and ignition timing issues. The 40-70MHz bandwidth covers common automotive signal frequencies, while the included probe pens and crocodile clips facilitate connections to vehicle wiring harnesses and connectors. Field service technicians can carry the complete kit to customer locations for on-site diagnostics without requiring bulky bench equipment.

Everyday Home Use

Electronics hobbyists and DIY repair enthusiasts benefit from the oscilloscope's ability to visualise signals in audio equipment, power supplies, microcontroller circuits, and household appliances. The portable format allows movement between workbench projects without disconnecting test setups, while the USB cable enables data transfer to computers for further analysis. Home workshops with limited permanent bench space appreciate the compact storage requirements when the unit is not in use.

Benefits and Buying Value

The oscilloscope kit provides practical advantages through its complete accessory package and portable design. Rather than purchasing individual components separately, technicians receive all necessary items for immediate use in various diagnostic scenarios.

Reuse and Low Maintenance

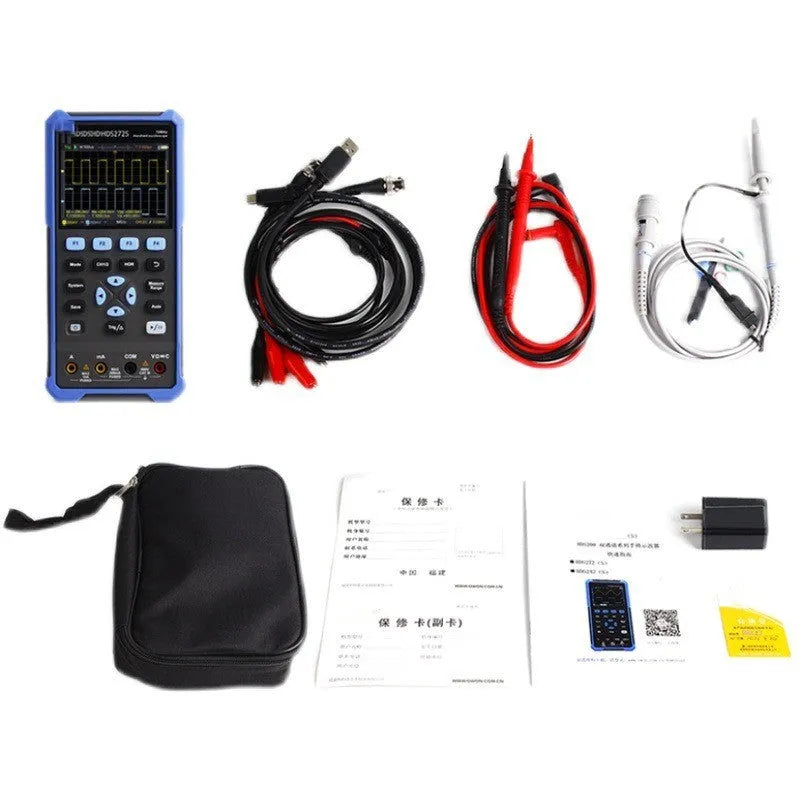

All included accessories—probe pens, multimeter pen, crocodile clips, and adapters—are designed for repeated use across multiple repair jobs. The portable carrying bag protects the investment during transport and storage, potentially extending the equipment's functional lifespan in active workshop environments. The digital display requires no calibration beyond initial setup using the included correction pen.

Why Choose This Product

Technicians selecting this oscilloscope obtain a balanced combination of measurement specifications and practical accessories at a portable size. The 40-70MHz bandwidth addresses common automotive and electronics frequencies, while the 250MSa/s sampling rate captures sufficient detail for most repair diagnostics. Unlike bulkier bench models, this handheld version supports mobile work patterns without sacrificing core functionality, and the complete accessory kit eliminates the need for separate purchases of probes, clips, or carrying cases.
