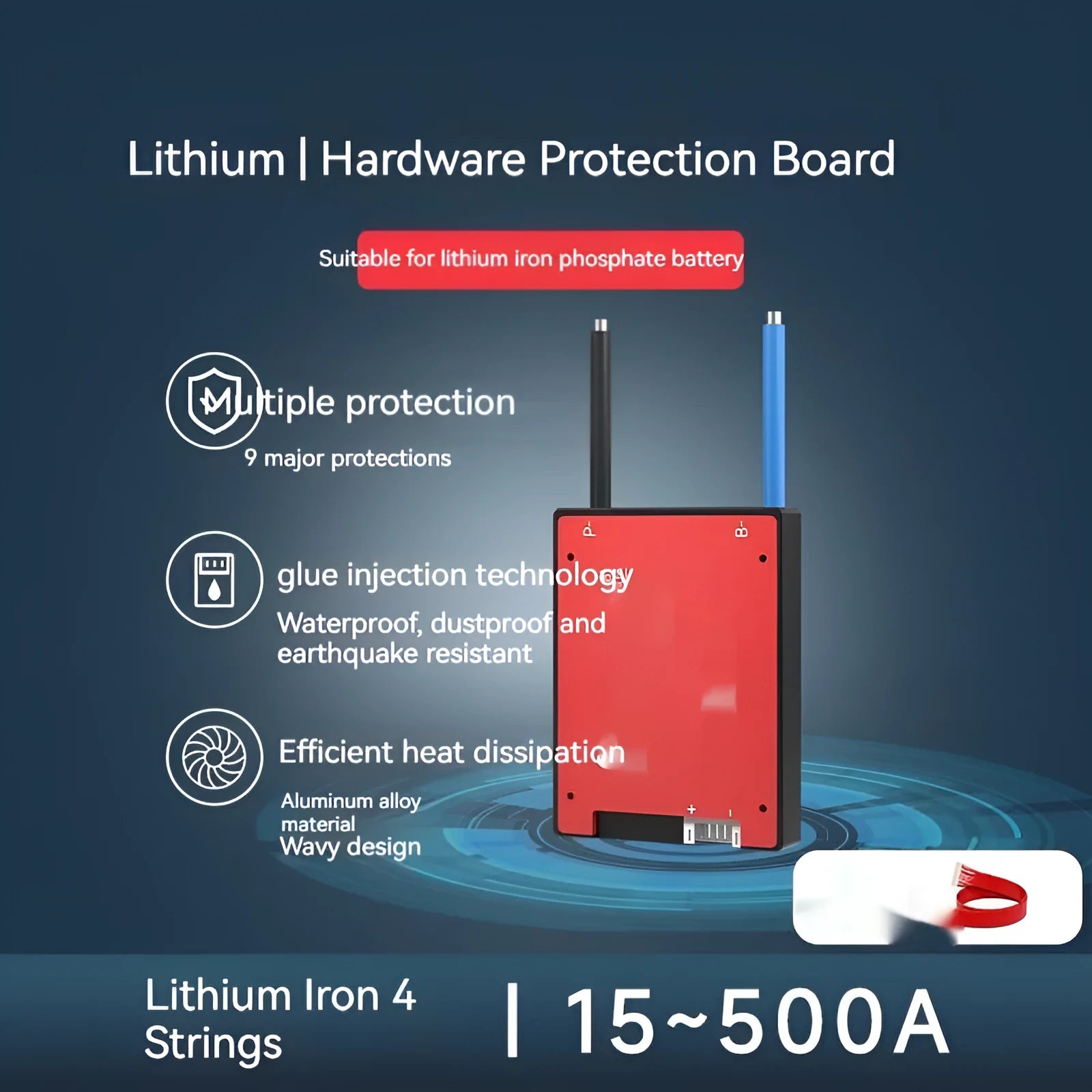

Dali 12V Lithium Iron Phosphate Battery Protection Board with Active Balancing for 4S Packs

This Dali battery protection board, also known as a Battery Management System (BMS), is engineered specifically for 4-cell series (4S) lithium iron phosphate (LiFePO4) battery packs. Its primary function is to monitor and protect your battery investment by preventing dangerous or damaging operating conditions, such as overcharging, excessive discharge, short circuits, and over-current scenarios. A key feature integrated into this board is active cell balancing technology. This function works to correct minor voltage differences between the individual cells in your series string, promoting more uniform ageing and helping to maximise the usable capacity and overall service life of the entire battery pack. The board is offered in a comprehensive range of current ratings, allowing you to select a model precisely matched to your application's power demands.

Features and Construction

The Dali BMS is built around a core set of protective functions essential for safe LiFePO4 battery operation. Its construction is based on a printed circuit board (PCB) populated with the necessary monitoring ICs, MOSFETs for switching, and balancing circuitry. The specific components and layout are optimised for the selected current rating of each model variant.

Material and Build

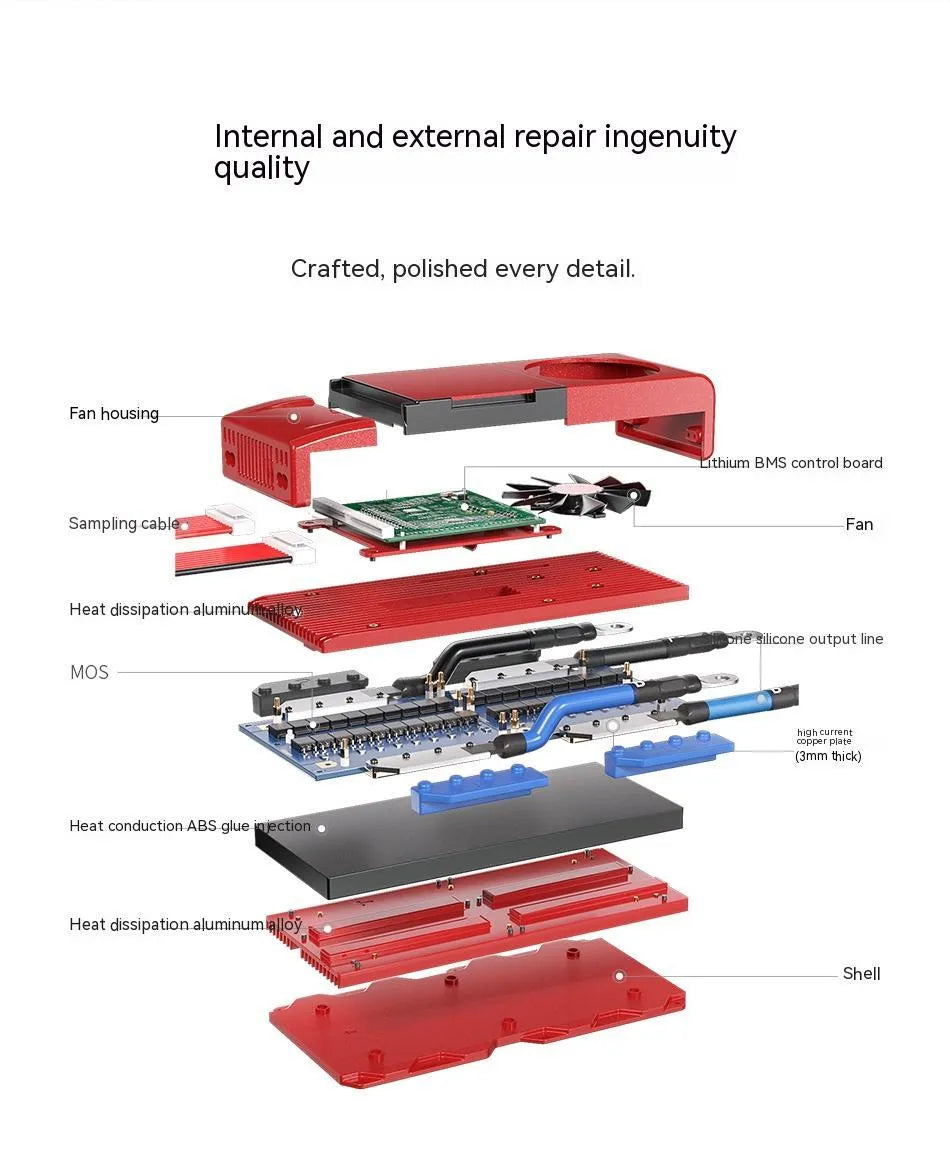

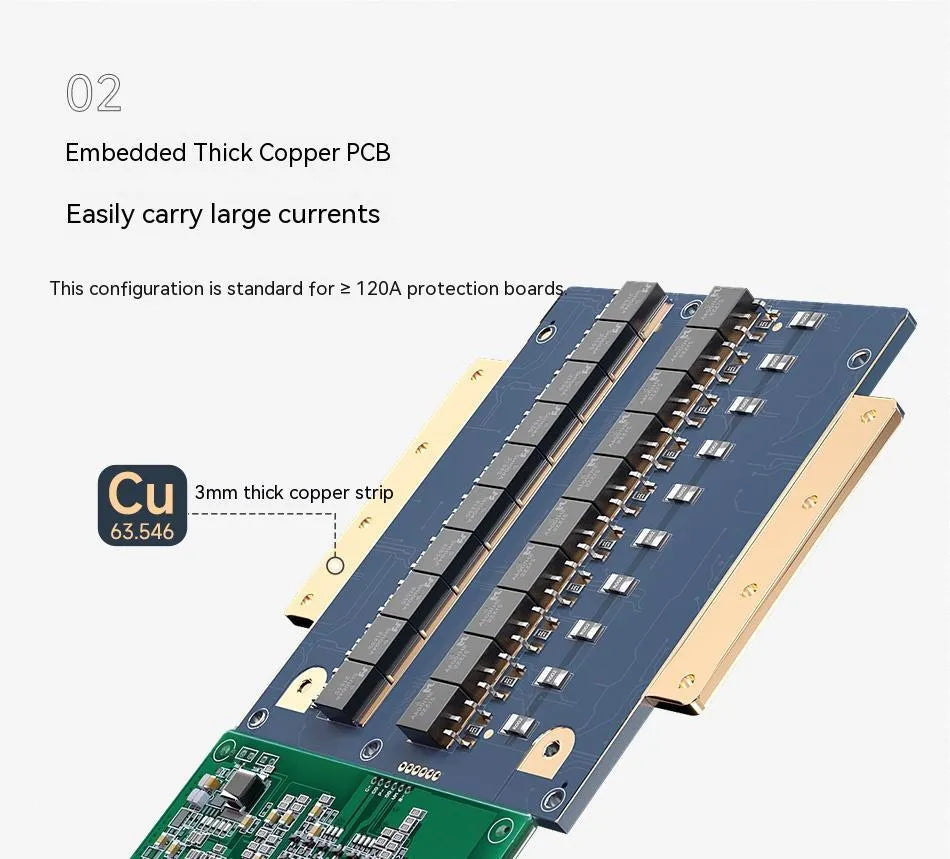

The foundation of the protection board is a fibreglass PCB, which provides a stable platform for the soldered electronic components that perform the voltage monitoring, logic control, and switching tasks. Electrical connections are made via sturdy metal terminals, designed to handle the specified current without excessive heating. Higher-power models utilise more robust MOSFETs and may incorporate larger traces or additional copper layers on the PCB to manage the increased electrical load. Models specified as including a fan feature an integrated cooling unit to actively move air across the board's power components, directly addressing the heat generated during high-current operation.

Size and Practical Fit

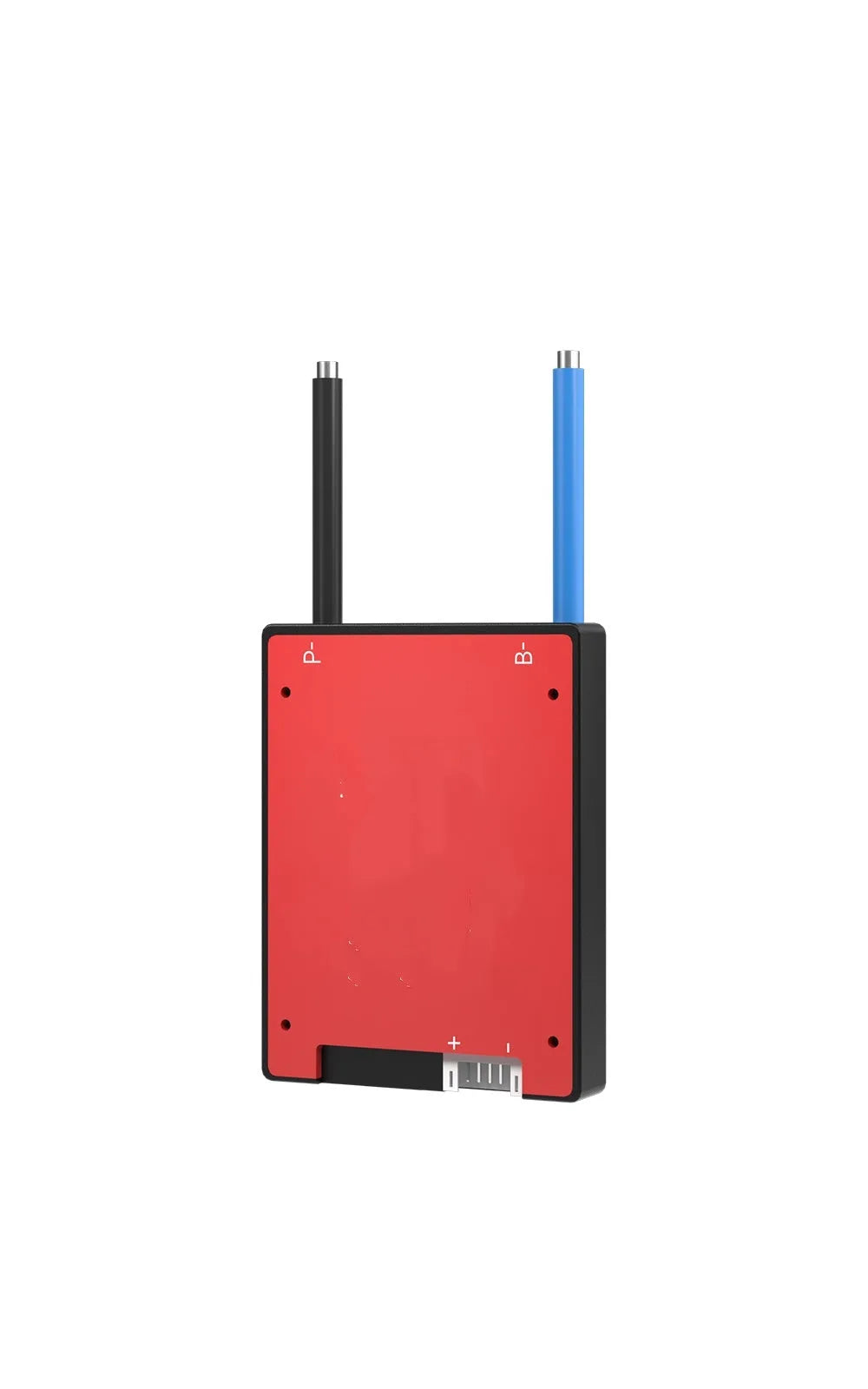

While exact physical dimensions are not detailed in the source material, the product is designed as a single, self-contained board. The same-port design is a significant practical advantage, meaning the board uses one set of main positive (P+) and negative (P-) terminals for both connecting the load and attaching the charger. This eliminates the need for separate charge and discharge ports, simplifying the wiring harness and reducing potential connection errors during installation into a battery box, vehicle, or solar power system.

Uses and Placement

This 4S LiFePO4 protection board is suited for a wide array of applications where a reliable 12V battery source is required. Its role is to be the intelligent guardian of the battery pack, constantly monitoring cell voltages and pack current.

Event or Professional Use

In professional, commercial, or demanding event settings, reliable power is critical. This BMS can be integrated into backup power supplies, portable sound and lighting rigs, or medical equipment carts. The availability of high-current models up to 500A makes it suitable for powering industrial equipment, electric vehicle conversions, or large off-grid inverters. The active balancing feature is particularly valuable in these scenarios, as it helps maintain pack integrity under frequent, deep cycling, which is common in daily professional use.

Everyday Home Use

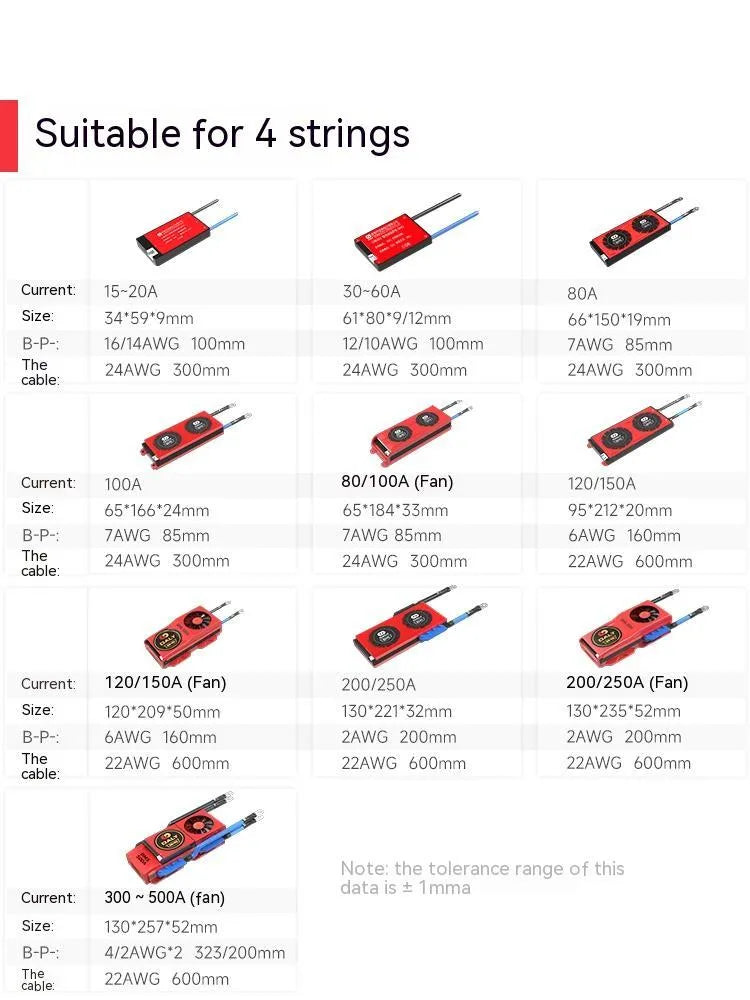

For home and hobbyist applications, this board provides safety and longevity for DIY battery projects. It is an ideal component for building or upgrading a battery pack for a caravan, motorhome, or boat, ensuring safe charging from solar panels or mains hook-ups. It can also be used in home energy storage systems, electric bicycles, scooters, or garden tool batteries. Lower-current models (15A-60A) are well-matched for these smaller-scale, everyday power needs, offering protection without unnecessary complexity.

Benefits and Buying Value

The value of this battery protection board lies in its targeted functionality and the flexibility offered by its wide model range. It addresses the core requirements for managing a modern LiFePO4 battery pack effectively.

Reuse and Low Maintenance

By actively balancing the cells, the board directly contributes to the long-term health of the battery pack. Balanced cells are less likely to be driven outside their safe voltage window during charge and discharge cycles, which reduces stress and can prevent premature failure of individual cells. This proactive maintenance, handled automatically by the BMS, supports the pack's potential for years of reliable service, protecting your initial battery investment. The inclusion of a fan on high-power models is a pre-emptive design choice to manage heat, a primary factor in electronic component longevity.

Why Choose This Product

Choosing this specific BMS provides a clear match between your battery pack's specifications (4S LiFePO4) and the board's design purpose. The extensive selection of current ratings allows for precise sizing, ensuring you are not paying for unused capacity nor risking protection cut-offs from an undersized unit. The option between standard and fan-cooled versions for high-current applications lets you tailor the solution to your expected duty cycle and thermal environment. The combination of essential protections with active balancing in a same-port configuration delivers a practical, feature-focused solution for managing 12V LiFePO4 battery systems.
