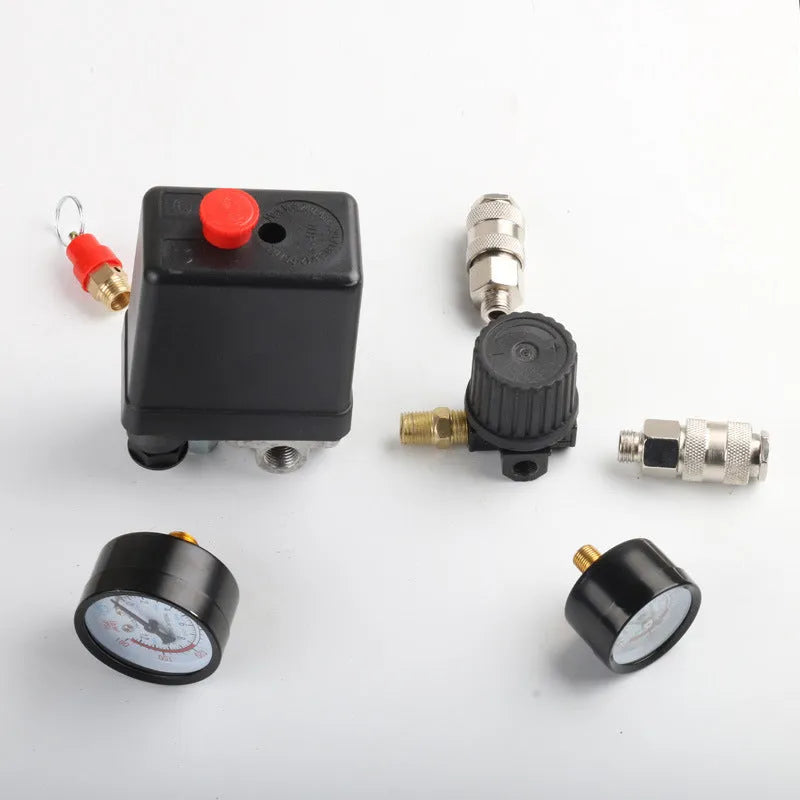

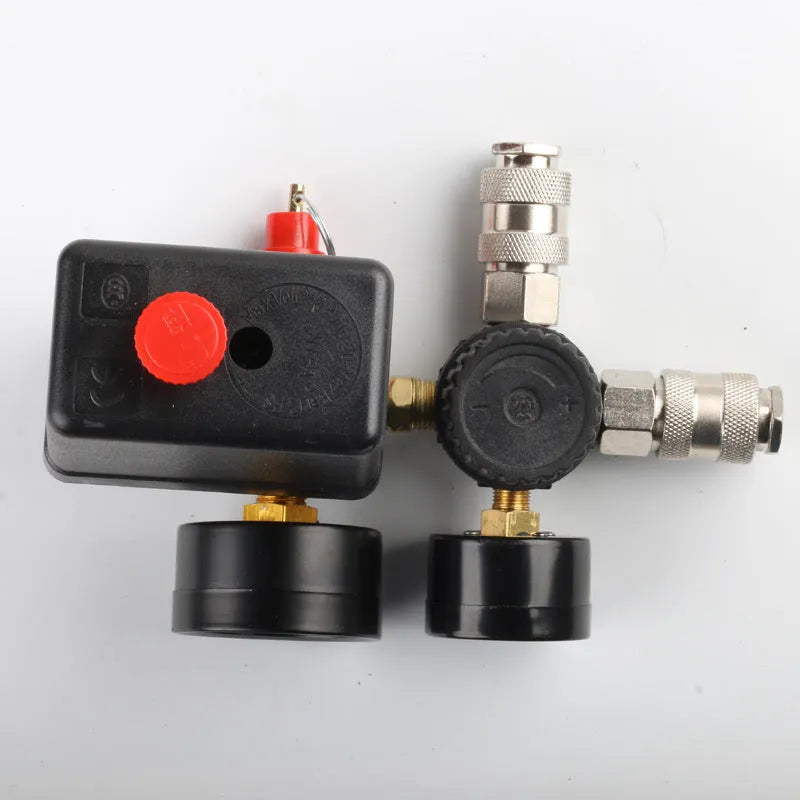

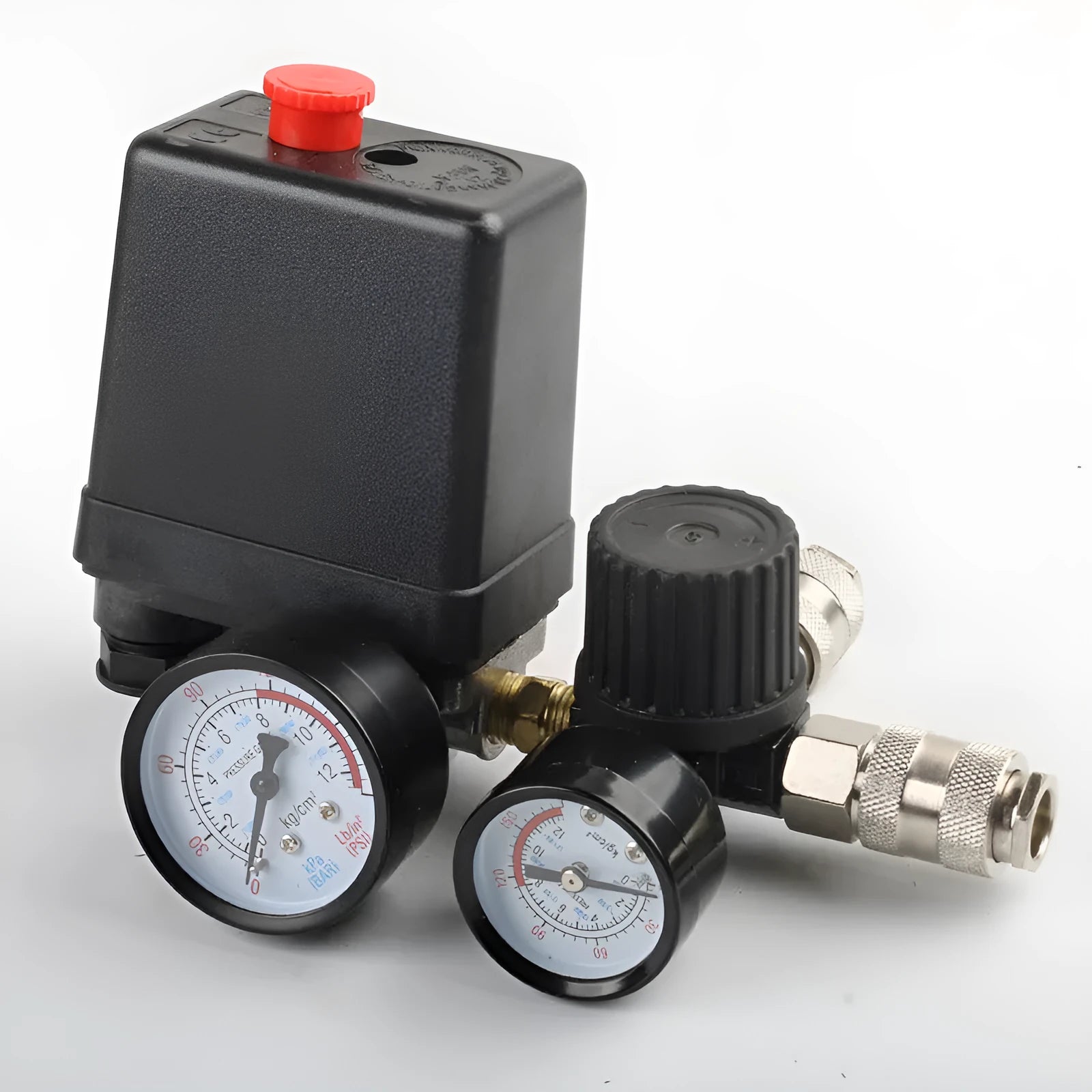

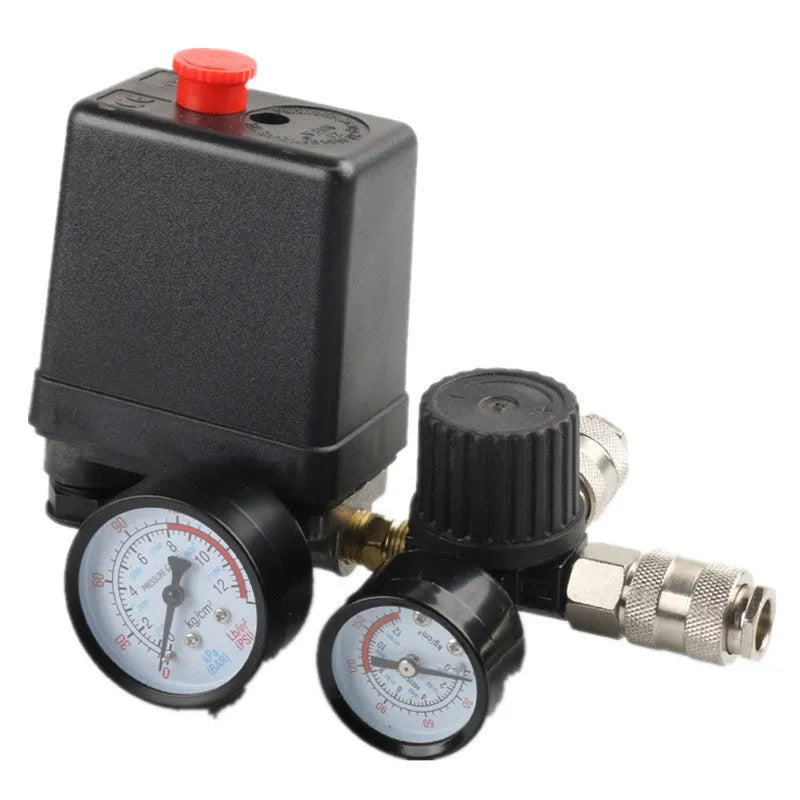

European style air compressor pressure switch assembly with adjustable 0.5-0.8 MPA range and dual voltage compatibility

This pressure switch assembly represents a practical solution for compressed air system operators requiring precise pressure regulation between 0.5 and 0.8 MPA (equivalent to 5-8 BAR or 90-120 PSI). Designed in the European style, the component offers reliable pressure control with normally closed contacts and supports both 220V and 380V electrical configurations, making it versatile for various workshop, garage, and industrial environments. With compact dimensions of 185mm by 100mm by 110mm, this pressure switch can be integrated into existing compressed air setups where space considerations are important while providing consistent pressure management for pneumatic tools and equipment.

Features and Construction

The pressure switch assembly combines practical electrical components with compressed air system compatibility through specific engineering choices. The construction focuses on delivering reliable pressure regulation within the specified 0.5-0.8 MPA range while accommodating standard industrial electrical requirements through dual voltage support.

Material and Build

Constructed using standard industrial plastics and electrical components appropriate for compressed air environments, this pressure switch assembly features clear labelling indicating maximum specifications including 240V maximum voltage, 20A maximum current, 12 BAR maximum pressure, and 175 PSI maximum pressure. The normally closed contact method provides standard functionality for air compressor applications where pressure regulation initiates system operation when predetermined pressure levels are reached. The mechanical design incorporates pressure adjustment mechanisms calibrated to the specified switching range.

Size and Practical Fit

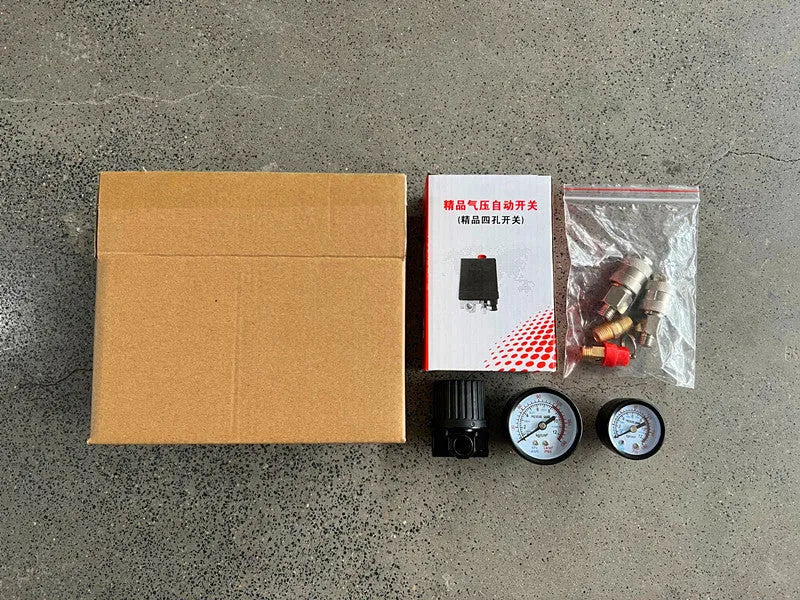

With dimensions of 185mm by 100mm by 110mm, the pressure switch offers a compact form factor suitable for installation in various compressed air system configurations. The 12mm (1/4 inch) connector size represents a standard industrial fitting compatible with common compressed air components, while the 6mm exhaust pipe diameter and 9.5mm outer diameter pressure relief port provide appropriate ventilation and pressure release capabilities. The product's net weight of 635 grams (720 grams when boxed) indicates a substantial but manageable component that can be securely mounted in workshop environments.

Uses and Placement

This pressure switch assembly serves as a control component within compressed air systems, regulating operating pressure to match specific pneumatic tool requirements. Its application spans multiple environments where compressed air powers equipment, from professional workshops to industrial manufacturing settings requiring consistent pressure management.

Event or Professional Use

In professional workshops and industrial settings, this pressure switch provides reliable pressure regulation for pneumatic tools requiring specific operating pressures. The adjustable 0.5-0.8 MPA range accommodates various air-powered equipment while the dual voltage compatibility (220V/380V) allows integration into different electrical systems. The normally closed contact configuration suits standard compressed air system designs where pressure-activated switching controls compressor operation cycles, ensuring consistent tool performance across extended use periods.

Everyday Home Use

For home workshop applications, this pressure switch enables proper compressed air system regulation for garage-based pneumatic tools used in automotive work, woodworking, or general maintenance tasks. The 20A maximum current rating provides adequate electrical capacity for typical workshop compressor motors, while the 12mm (1/4 inch) connector size matches common compressed air fittings found in home workshop setups. Clear pressure range markings (0.5-0.8 MPA / 5-8 BAR / 90-120 PSI) help users set appropriate operating pressures for their specific tools.

Benefits and Buying Value

The pressure switch assembly delivers practical advantages through precise pressure control, dual voltage compatibility, and standardised connector sizing that simplifies compressed air system integration. These features combine to provide reliable operation across various applications without requiring specialised components or complex installation procedures.

Reuse and Low Maintenance

Designed as a replacement or upgrade component for existing compressed air systems, this pressure switch offers straightforward integration through standard 12mm (1/4 inch) connectors and conventional electrical connections. The normally closed contact method represents standard compressed air system design, allowing the switch to replace existing components without system redesign. Proper installation according to electrical and pneumatic safety protocols can provide extended service life as part of a well-maintained compressed air setup.

Why Choose This Product

This pressure switch assembly provides specific technical specifications including the 0.5-0.8 MPA adjustable pressure range, dual 220V/380V voltage compatibility, 12mm connector size, and normally closed contact configuration. These measurable features offer concrete benefits for compressed air system operators requiring precise pressure regulation with standard industrial compatibility. The compact 185mm x 100mm x 110mm dimensions allow installation in space-constrained environments while maintaining full functionality across the specified pressure range.
